    • PowerHill-261kWh

    261kWh All-in-One Liquid Cooled Energy Storage System

    Download Datasheet Contact

    HomeProductsC&l BESSPowerHill-261kWh

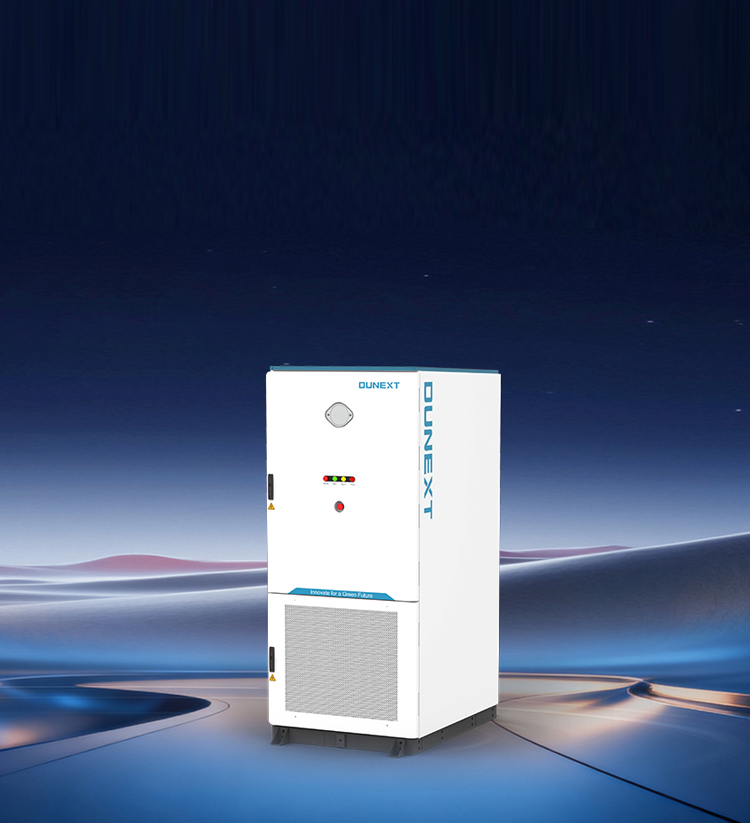

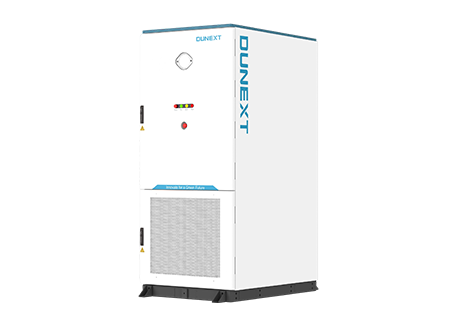

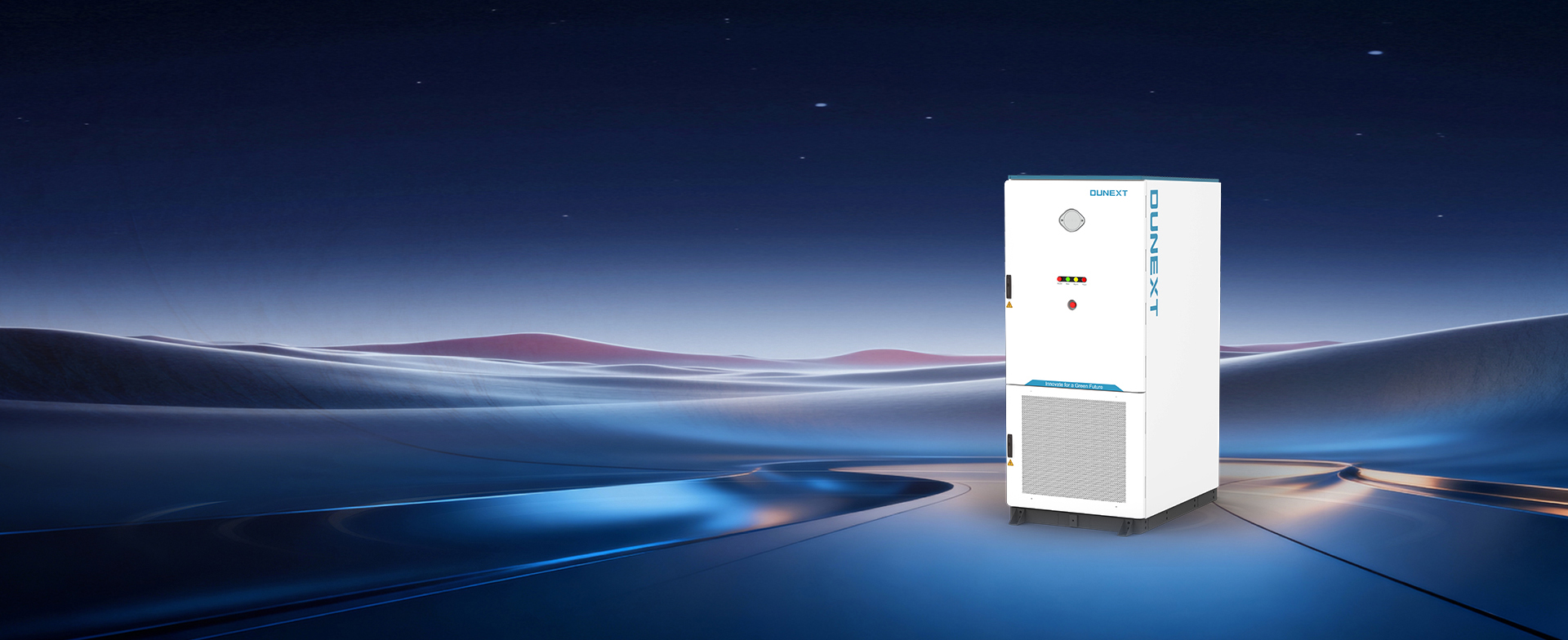

    PowerHill-261kWh
    PowerHill 261kWh is an advanced liquid cooled energy storage system powered by 314Ah LFP cells. This all-in-one BESS provides 261kWh of usable energy with 0.5C charge/discharge capability and a system round-trip efficiency (RTE) of ≥90%. The integrated outdoor design supports parallel operation of up to 10 units, enabling flexible scaling from kWh to MWh. Ideal for peak shaving, demand management, time-of-use arbitrage, backup power, and PV self-consumption.
    Key Features

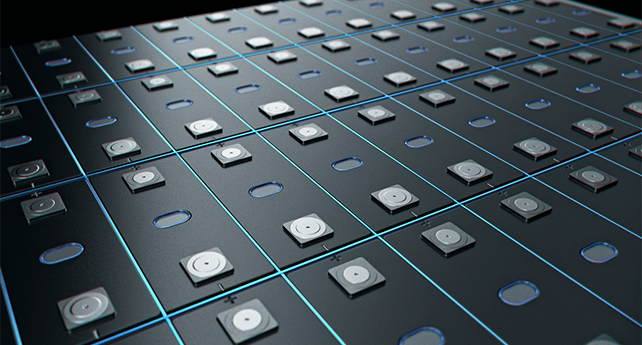

    High Capacity & Better ROI
    High Capacity & Better ROI

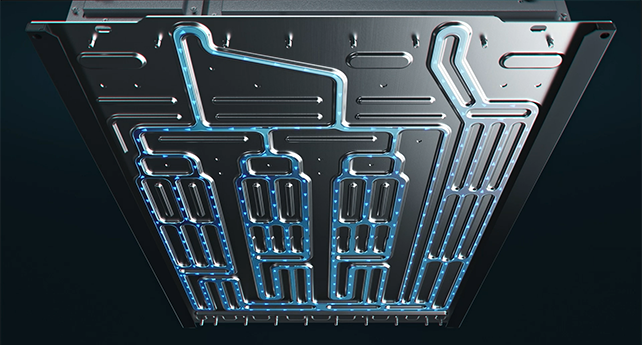

    Smart Liquid Cooling, Even Heat Dissipation
    Smart Liquid Cooling, Even Heat Dissipation

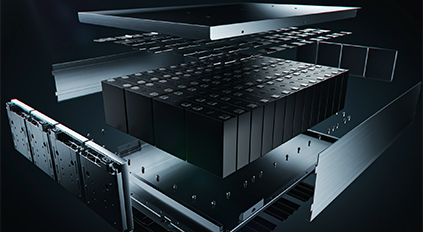

    Six-Side Insulated Cell Protection
    Six-Side Insulated Cell Protection

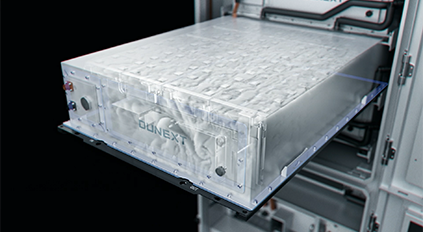

    Pack-Level Fire Suppression
    Pack-Level Fire Suppression

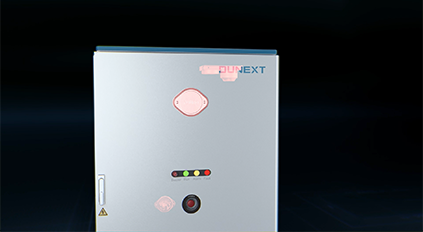

    Reliable High-Voltage Isolation
    Reliable High-Voltage Isolation

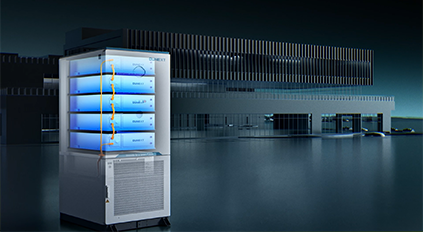

    Triple-Protected HV Box
    Triple-Protected HV Box

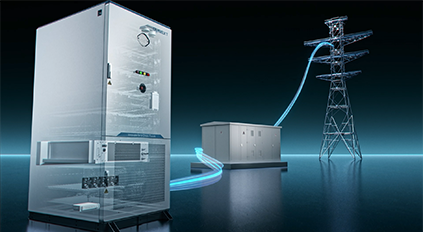

    Microsecond Grid Protection
    Microsecond Grid Protection

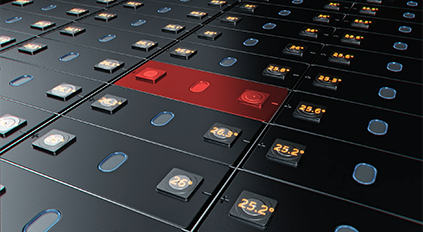

    Fault Containment
    Fault Containment
    Flexible Parallel Expansion

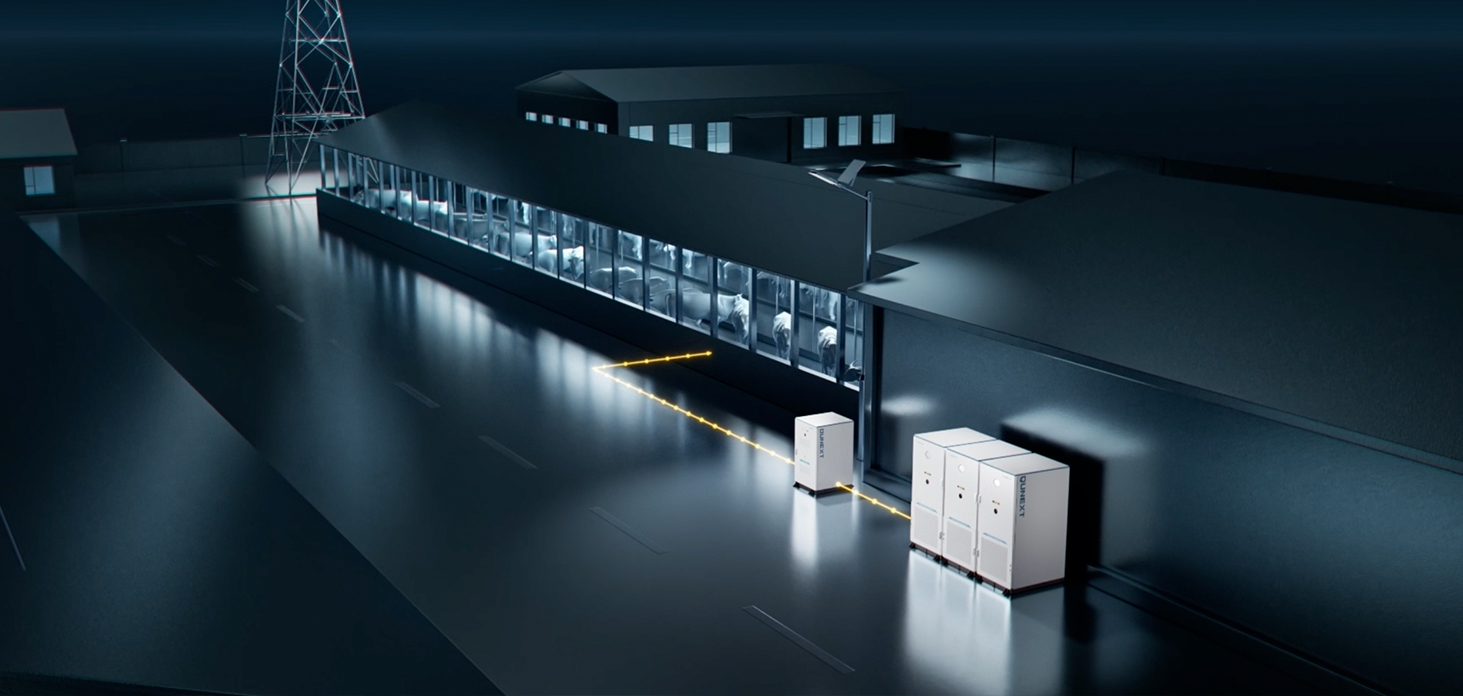

    Up to 10 PowerHill units can be paralleled per site. The master unit is pre- configured at the factory. Side- by- side installation minimises footprint. Scale on demand – reduce upfront CAPEX and add capacity easily later.
    Seamless On/Off- Grid Switching
    With DuLink technology, seamless switchover in <20ms protects critical loads. An economical second- level switching option is also available for different project budgets.

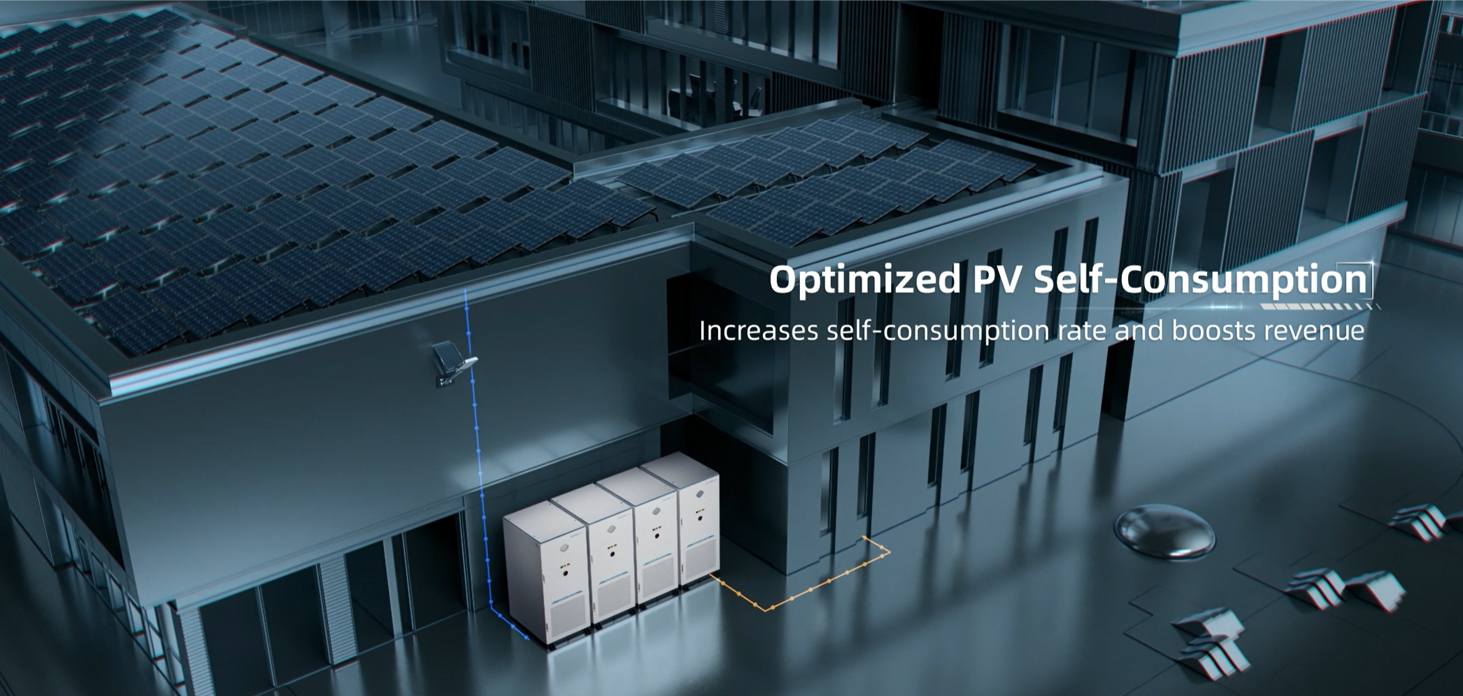

    PV + ESS Coordination – Maximise Self Consumption

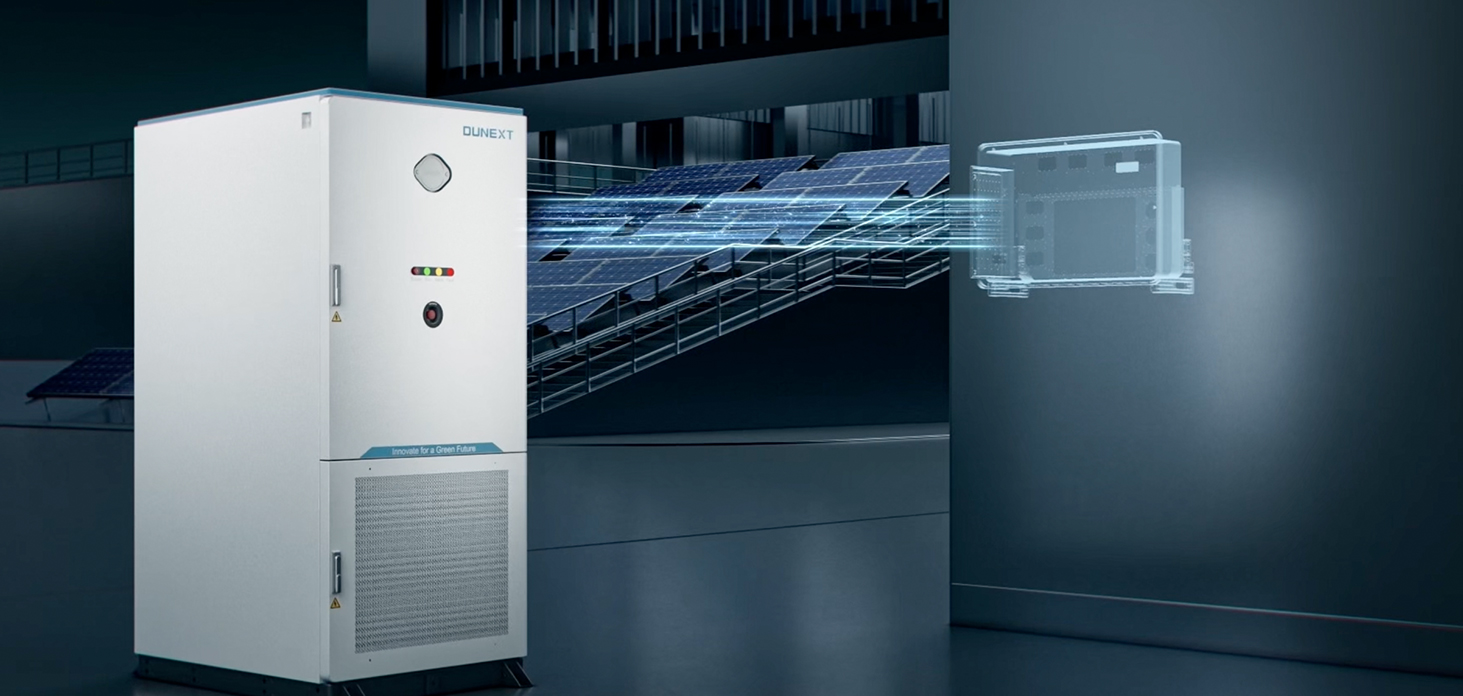

    Supports direct communication with major third- party inverters. Dual- meter configuration enables real- time monitoring of PV generation and load. Advanced functions like zero- export, demand control, and real- time data tracking boost self- consumption and project returns.

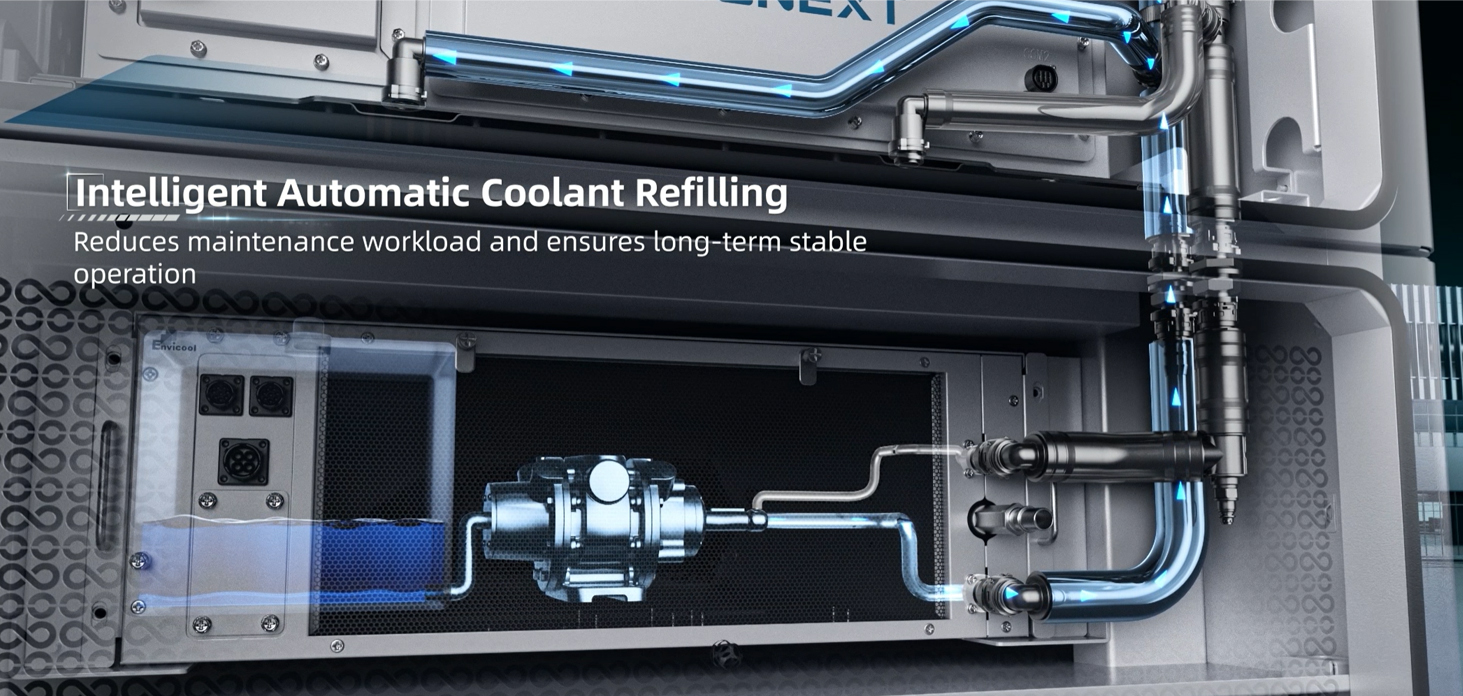

    Auto Coolant Replenishment – Simplified O&M

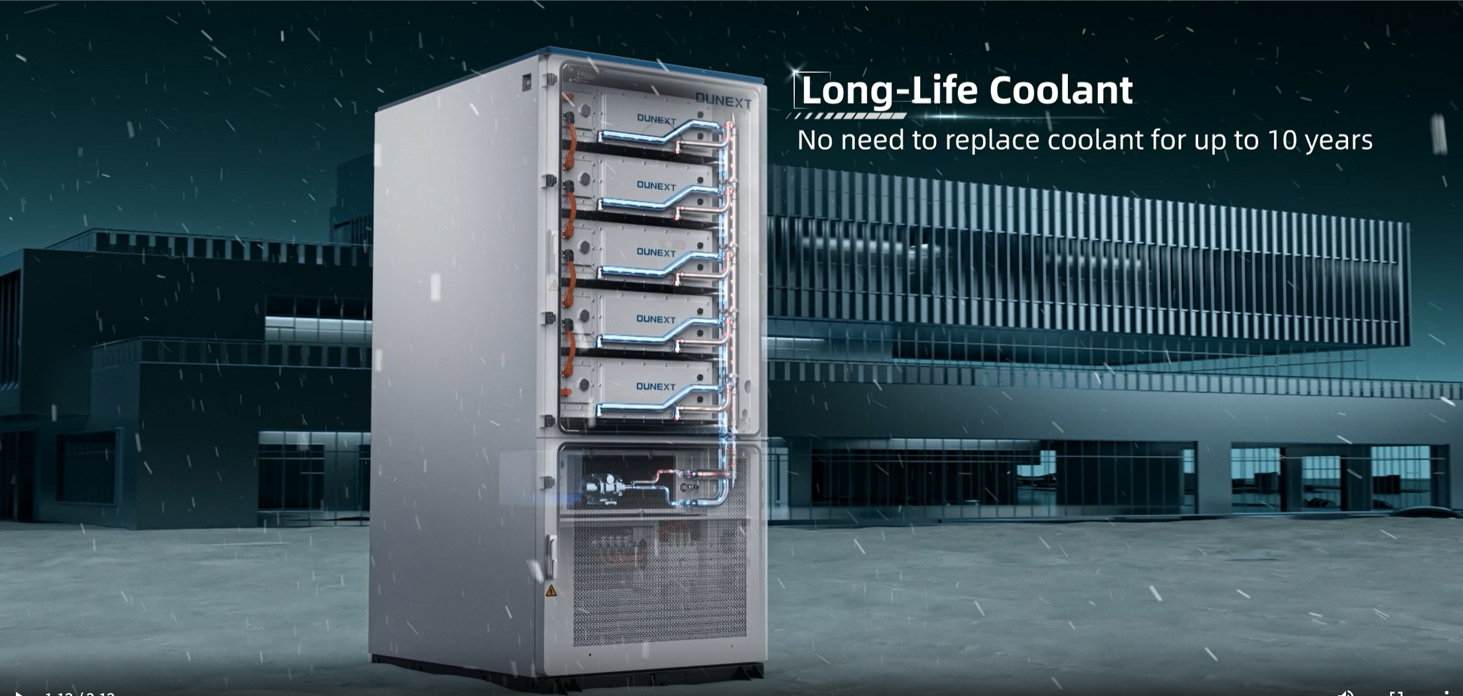

    Industry- first auto- replenishment cooling unit. It monitors return water pressure and automatically refills from the tank when needed – no manual topping up. Coolant lasts 10 years without replacement, enabling truly low- maintenance operation.
    Low- GWP Refrigerant – Future- Proof Compliance
    Uses R513A refrigerant with GWP of 631 – approximately 70% lower than traditional R134a. Fully compliant with EU F- gas Regulation 2024/573, ensuring risk- free market access in Europe.
    C5 Anti- Corrosion Cabinet – High Environmental Adaptability
    Rated IP67 and C5 corrosion protection, suitable for coastal, high- humidity, high- salt- spray, and chemical plant environments. The built- in intelligent dehumidifier automatically maintains a dry interior for stable electrical insulation.
    DuLink & Local EMS – Easy Monitoring & Maintenance

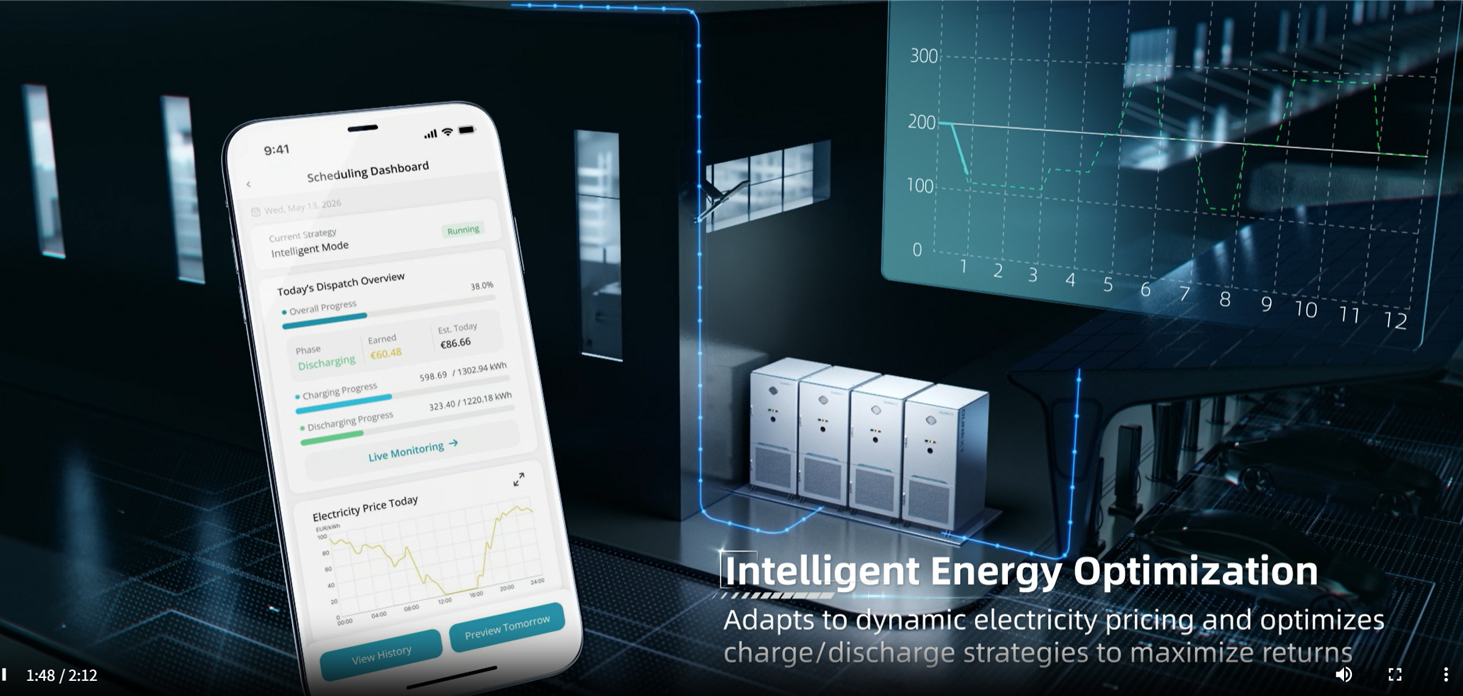

    Minute- level visual monitoring, cell- level realtime data and alerts. No licensing, subscription, or forced upgrade fees. Software- hardware co- design delivers dispatch within ≤100ms. Open APIs enable seamless integration with third- party systems.

    Product Specifications

    Cell Type LiFePO4-314Ah
    Pack Configuration
    5 * (1P52S)
    Battery Capacity(kWh) 261
    RatedCharging/Discharging Power [kW] 125
    Rated Grid Voltage [V] 220 / 380; 230 / 400
    Dimensions[W*H*D] [mm]
    1026 * 2366 * 1350
    Download Contact
